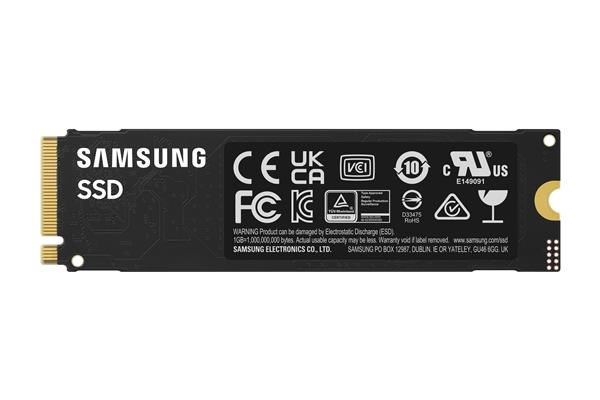

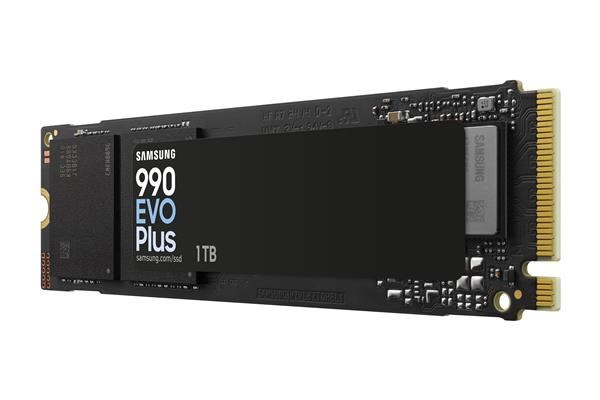

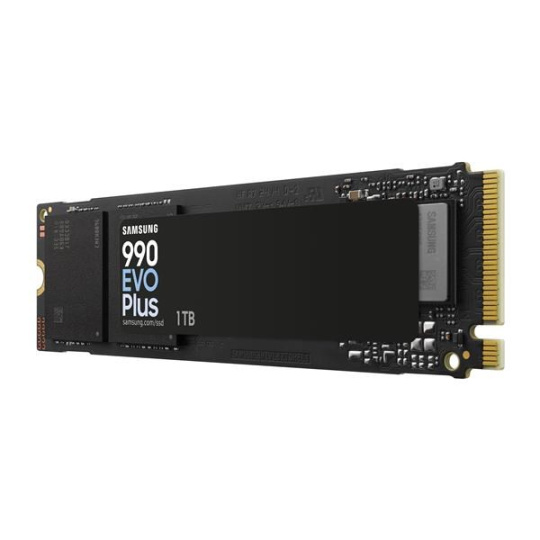

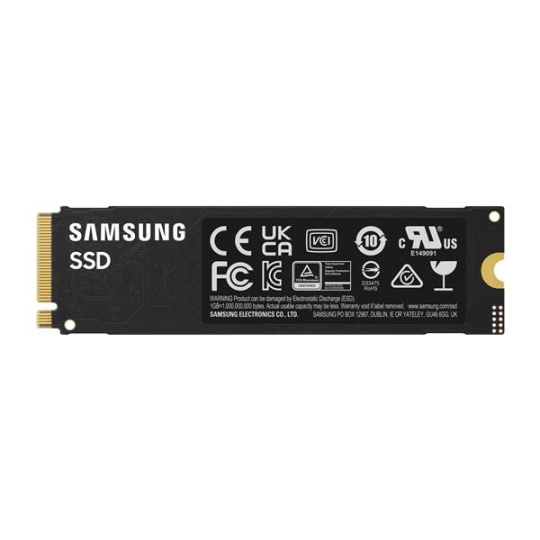

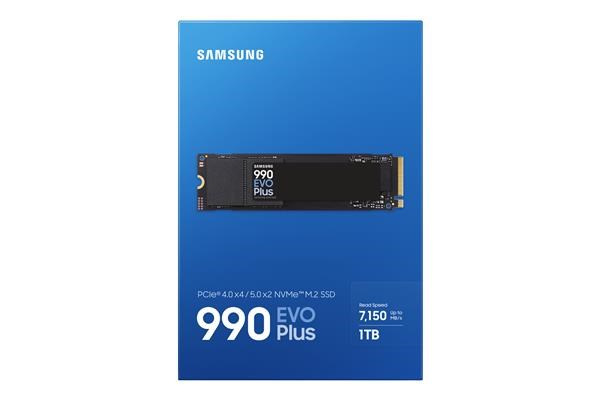

Samsung 990 EVO Plus 4000GB
Popis a parametre
Samsung 990 EVO Plus 4000GB
| Model Code | MZ-V9S1T0BW | |
| Attribute | Value | |
| General Feature | Application | Client PCs |
| Capacity | 4,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) | |
| Form Factor | M.2 (2280) | |
| Interface | PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 | |
| Dimension (WxHxD) | Max 80.15 x Max 22.15 x Max 2.38 mm | |
| Weight | Max 9.0g Weight | |
| Storage Memory | Samsung V-NAND TLC | |
| Controller | Samsung in-house Controller | |
| Cache Memory | HMB(Host Memory Buffer) | |
| Special Feature | TRIM Support | Supported |
| S.M.A.R.T Support | Supported | |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm | |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) | |
| WWN Support | Not supported | |
| Device Sleep Mode Support | Yes | |
| Performance | Sequential Read | Up to 7,150 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 6,300 MB/s * Performance may vary based on system hardware & configuration | |
| Random Read (4KB, QD32) | Up to 850,000 IOPS * Performance may vary based on system hardware & configuration | |
| Random Write (4KB, QD32) | Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration | |
| Environment | Average Power Consumption (System Level) | Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Idle) | Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration | |
| Power Consumption (Device Sleep) | Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration | |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage | |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) | |
| Operating Temperature | 0 - 70 ? Operating Temperature | |
| Shock | 1,500 G & 0.5 ms (Half sine) | |
| Accessories | Installation Kit | Not Available |
| Software | Management SW | Magician Software for SSD management |
| Warranty | 5-year Limited Warranty or 600TBW Limited Warranty | |
.
ParametrePridať do porovnania
Formát
M.2
Rozhraní
NVMe
Velikost bufferu (v MB)
nespecifikováno
Typ disku
SSD
Typ paměti SSD
TLC
Rychlost zápisu MB/s
6000MB/s a víc
Rychlost čtení MB/s
7000MB/s a víc
Použití disku
Pro PC
Použití disku
Pro Notebooky
SSD Kapacita (GB)
4000
Samsung 990 EVO Plus 4000GB
