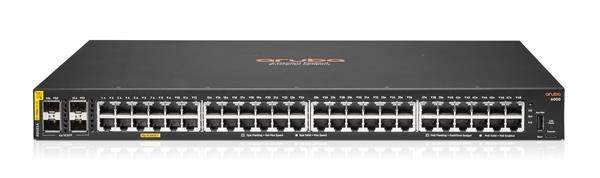

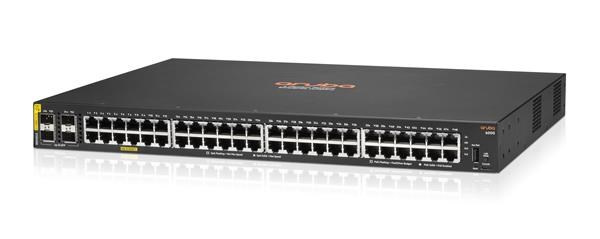

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch R8N85A RENEW

Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet 1000Mbps; Maximálny počet portov:48; Management:SNMP/RMON; Vlastnosti switche:Funkcia POE na portoch.... viac
Bežná cena: 1 528.13  (-20%)
1 016.64 € bez DPH
Na dotaz
1 219.97 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Popis a parametre

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch R8N85A RENEW

Aruba 6000 48G Class4 PoE 4SFP 370W Switch R8N85A RENEW

Specifications

Aruba 6000 48G 4SFP Switch

(R8N86A)

Description

48x ports 10/100/1000BASE-T Ports

4x 1G/10G SFP ports

1x USB-C Console Port

1x USB Type-A Host port

Power supplies

Fixed power supply

Fans

Fixed fans

Physical characteristics

Dimensions

(H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74")

Configuration Weight

3.42 kg (7.54 lbs)

Additional Specifications

CPU

Dual Core ARM Cortex A9 @ 1016 Mhz

Memory and Flash

4 GB DDR3 16 GB eMMC

Packet Buffer

12.38MB (4.5MB Ingress/7.875MB Egress)

Performance

Model Switching Capacity

104 Gbps

Model Throughput Capacity

77.3 Mpps

Average Latency (LIFO-64- bytes packets)

1 Gbps: 1.9 µSec

Switched Virtual Interfaces (dual stack)

16

IPv4 Host Table (ARP)

1,024

IPv6 Host Table (ND)

512

IPv4 Unicast Routes

512

IPv6 Unicast Routes

512

MAC Table Capacity

8,192

IGMP Groups

512

MLD Groups

512

IPv4/IPv6/MAC ACL Entries (ingress)

256 / 128 / 256

Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A)

Aruba 6000 48G 4SFP Switch

(R8N86A)

Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A)

Environment

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Operating Relative Humidity

15% to 95% at 104°F (40°C) non-condensing

15% to 95% at 104°F (40°C) non-condensing

15% to 95% at 104°F (40°C) non-condensing

Non-Operating

-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)

-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)

-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)

Non-Operating Storage Relative Humidity

15% to 90% @ 149°F (65°C) non-condensing

15% to 90% @ 149°F (65°C) non-condensing

15% to 90% @ 149°F (65°C) non-condensing

Max Operating Altitude

10000 feet (3 km) Max

10000 feet (3 km) Max

10000 feet (3 km) Max

Max Non-Operating Altitude

15000 feet (4.6 km) Max

15000 feet (4.6 km) Max

15000 feet (4.6 km) Max

Acoustic

Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB

Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB

Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB

Primary Airflow

Side-to-side

Side-to-side

Side-to-side

Electrical Characteristics

Frequency

50 / 60 Hz

50 / 60 Hz

50 / 60 Hz

AC Voltage

100-127 VAC / 200-240 VAC

100-127 VAC / 200-240 VAC

100-127 VAC / 200-240 VAC

Current

4.9 A / 2.4 A

0.8 A / 0.5 A

4.6 A / 2.3 A

Power Consumption (230 VAC)

Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W

Idle: 20.6W Max Power (w/o PoE): 44.2W

Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W

Safety

UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/

CSA-C22.2 No. 60950-1;

EN 60825-1

UL 62368-1 Ed. 2; IEC

62368-1 Ed. 2; EN 62368-1:2014

UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/

CSA-C22.2 No. 60950-1;

EN 60825-1

UL 62368-1 Ed. 2; IEC

62368-1 Ed. 2; EN 62368-1:2014

UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/

CSA-C22.2 No. 60950-1;

EN 60825-1

UL 62368-1 Ed. 2; IEC

62368-1 Ed. 2; EN 62368-1:2014

Emissions

VCCI-CISPR 32, Class A; CNS

13438; ICES-003 Issue 6

Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016 /

CISPR-32, Class A

VCCI-CISPR 32, Class A; CNS

13438; ICES-003 Issue 6

Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016 /

CISPR-32, Class A

VCCI-CISPR 32, Class A; CNS

13438; ICES-003 Issue 6

Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016 /

CISPR-32, Class A

Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A)

Aruba 6000 48G 4SFP Switch

(R8N86A)

Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A)

Lasers

EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

Immunity

Generic

CISPR 24 / CISPR 35

CISPR 24 / CISPR 35

CISPR 24 / CISPR 35

EN

EN 55024:2010 /

EN 55035:2017

EN 55024:2010 /

EN 55035:2017

EN 55024:2010 /

EN 55035:2017

ESD

IEC 61000-4-2

IEC 61000-4-2

IEC 61000-4-2

Radiated

IEC 61000-4-3

IEC 61000-4-3

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

IEC 61000-4-4

IEC 61000-4-4

Surge

IEC 61000-4-5

IEC 61000-4-5

IEC 61000-4-5

Conducted

IEC 61000-4-6

IEC 61000-4-6

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

IEC 61000-4-8

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

IEC 61000-4-11

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

EN 61000-3-2, IEC 61000-3-2

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

EN 61000-3-3, IEC 61000-3-3

EN 61000-3-3, IEC 61000-3-3

Mounting and Enclosure

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting

.
Maximální počet portů
48
Provedení
Rack mounted 19"
Technologie
Gigabit Ethernet 1000Mbps
Management
SNMP/RMON
Vlastnosti switche
Funkce POE po portech
PoE budget (W)
370
Přenosová rychlost LAN (Mb/s)
570
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
PoE (Power over ethernet)
Funkce
L2
Počet SFP portů
4
Maximální počet portů
48
Počet SFP portů
4
PoE budget (W)
370
